RML Red
– OVERVIEW –

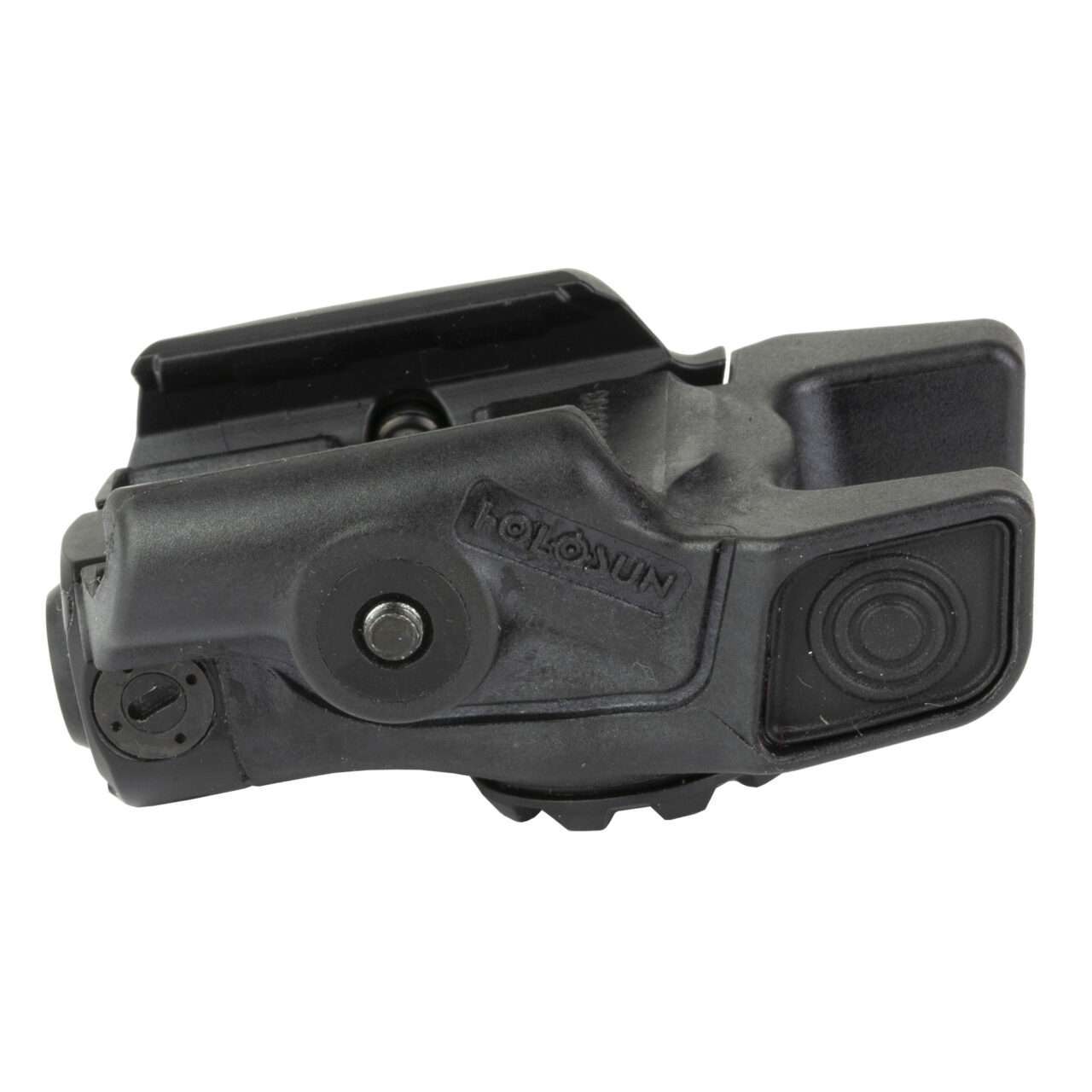

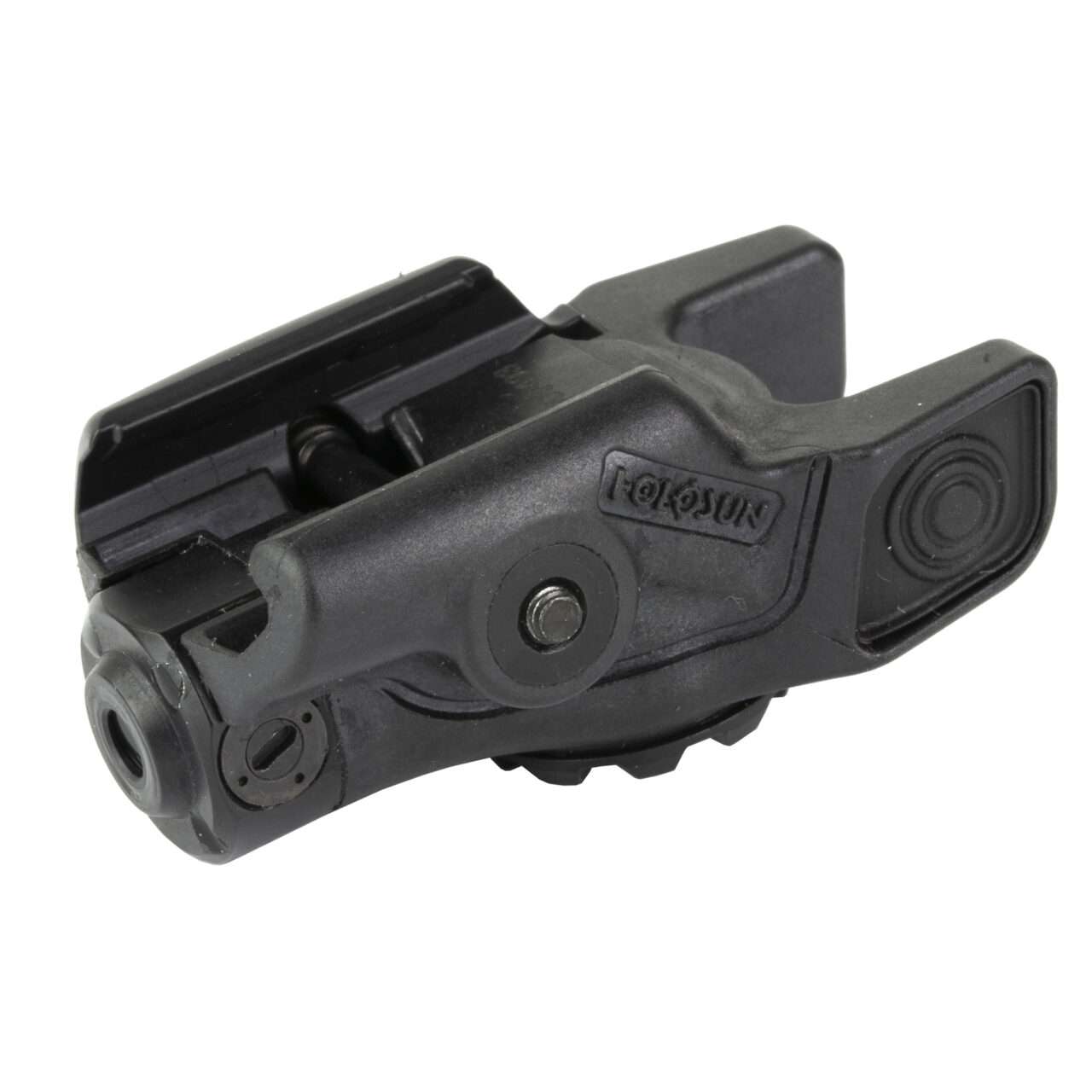

The RML-RD (Rail Mounted Laser) is a miniature red laser aiming device designed for handgun applications. The RML-RD features a durable polymer housing and is powered by a CR1/3N lithium battery with two power settings, high mode (1mW) and low mode (5mW). The RML-RD has ambidextrous activation buttons and includes adapter keys for universal compatibility.
The RML-RD is IP68 certified waterproof and dustproof and has a robust windage and elevation adjustment mechanism with tactile clicks for excellent zero retention under recoil and is compatible with many weaponlight holsters.
In the Box
- T10 L Key
- User Manual
- CR 1/3N Battery
- Lens Cloth
– SPECIFICATION –
- Single Visible Laser
- Universal Rail Mount
- Tactile W&E Adjustments
- Compatible with most Weapon Light holsters
- Durable Polymer Housing
ELECTRONIC SPECS
Power Source – Battery
Battery Type – CR1/3N
Battery Life (Hours) – Up to modes
Brightness Setting – Up to modes
PHYSICAL SPECS
Window Size – N/A
Dimension (in) – 1.97×1.18×0.91
Weight (oz) – 1.3
MECHANICAL SPECS
Housing Material – Polymer
Surface Finish – Paint
Adjustment per Click – 4 MOA
W&E Travel Range – ±60 MOA
ENVIRONMENT SPECS
Storage Temperature – -40℃~70℃
Working Temperature – -20℃~51℃
Submersion – IP67
Vibration – 1000G
ILLMINATOR SPECS
White LED Candela – N/A
Laser & Illuminator Type – Single Laser
White LED Output – N/A
IR Illuminator Class – N/A
IR Illuminator Output – N/A
IR Pointer Class – N/A
IR Pointer Output – N/A
Visible Laser Class – IIIA
Visible Laser Output – 1mw(low)/5mw(high)
