HS403B
OVERVIEW

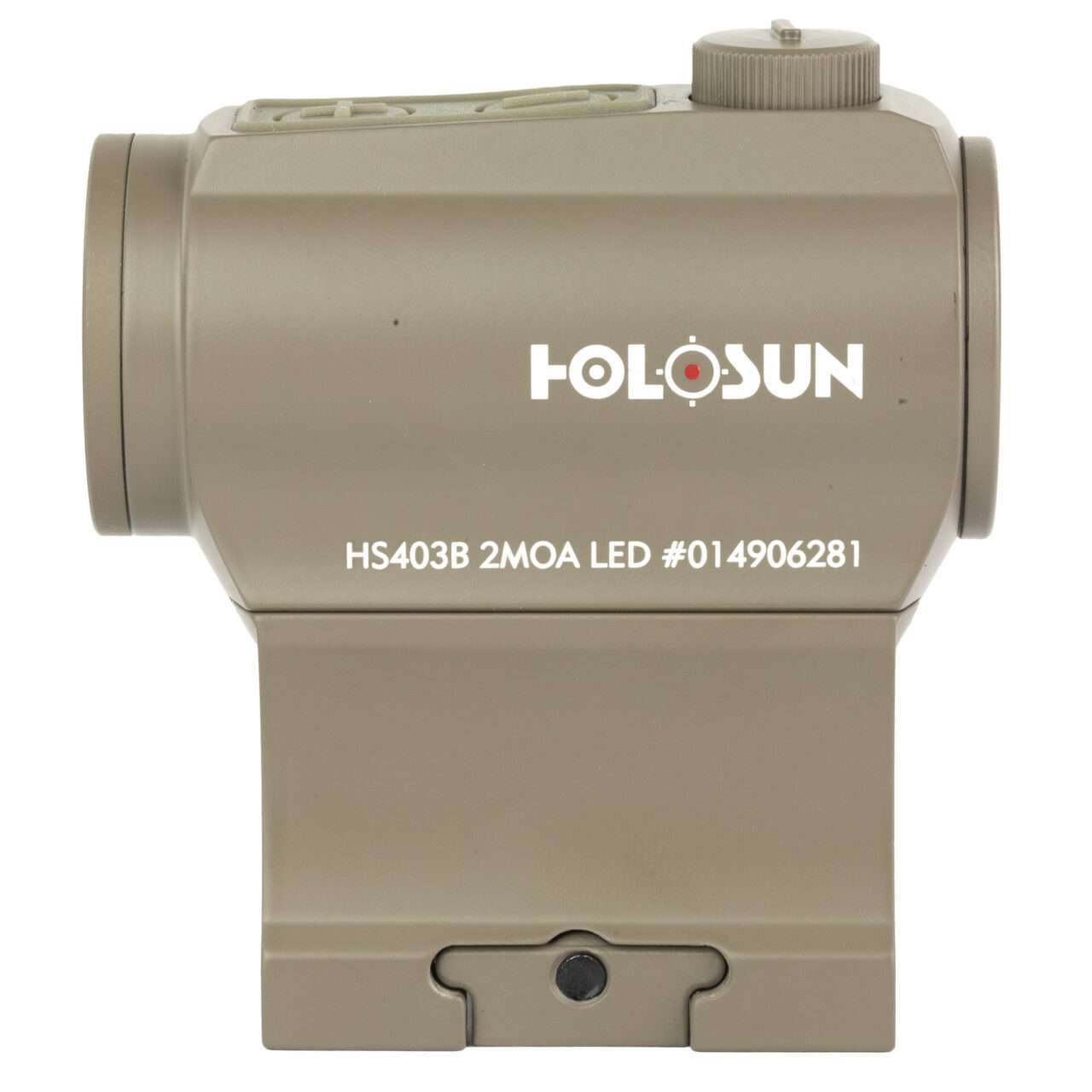

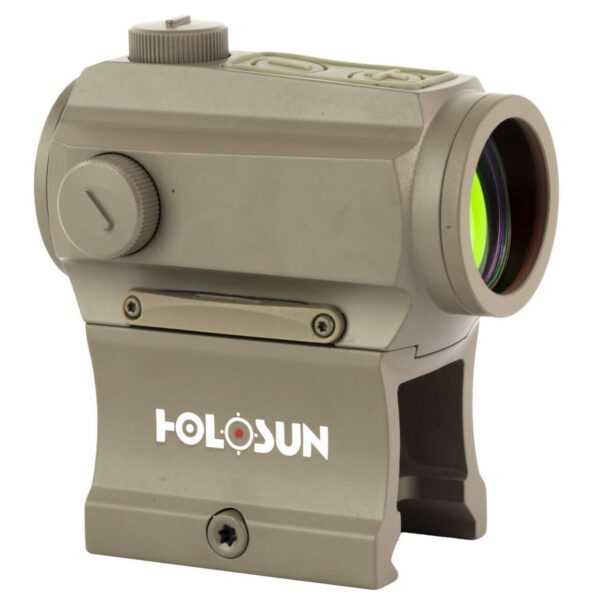

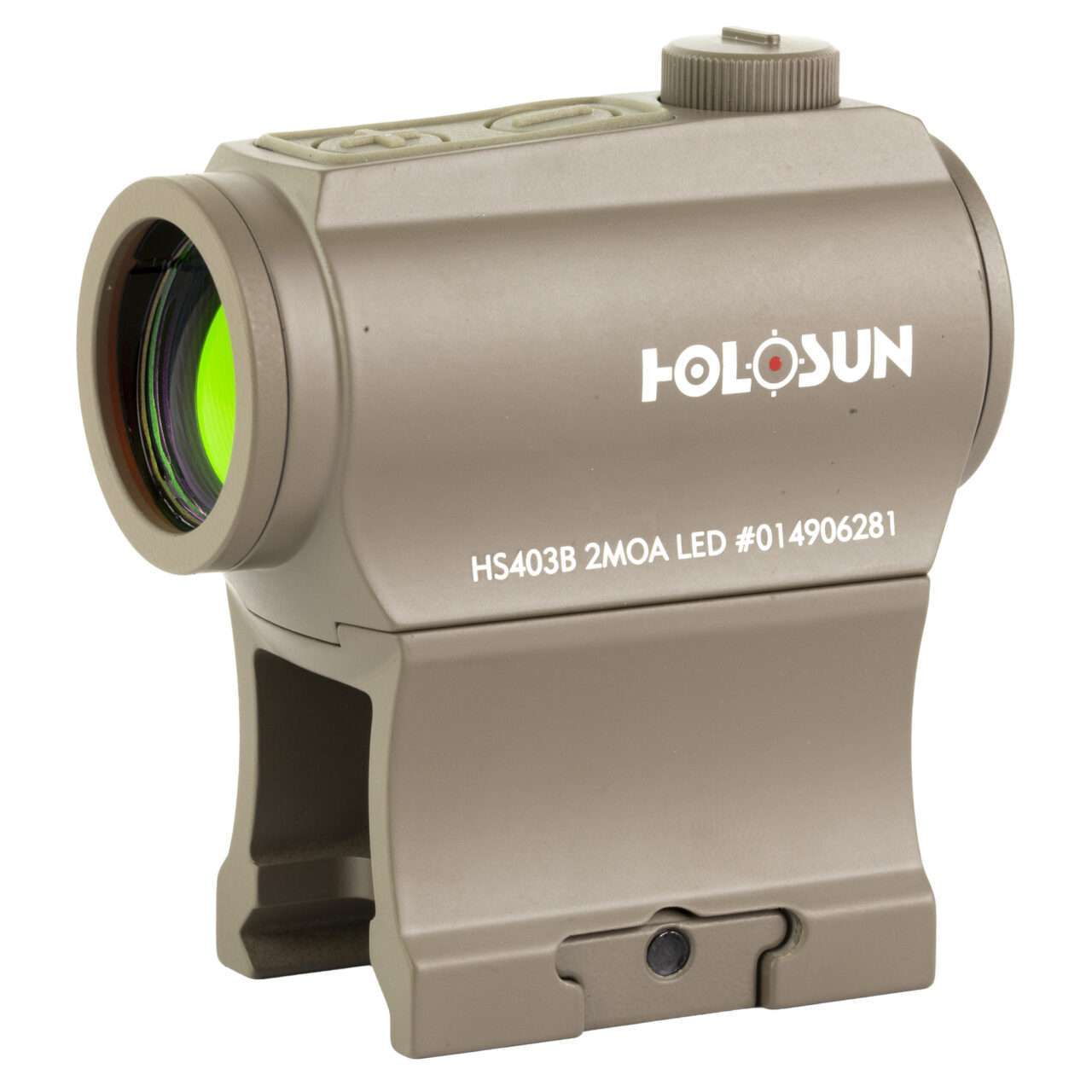

The HS403B is a 20mm micro optical sight designed for rifle and carbine applications. Features include 12 brightness settings, Holosun’s Super LED with up to 100k hours battery life, and 2 MOA Dot.
In the Box
- Lower 1/3 Cowitness Mount
- Low Profile Mount
- T10 L Key
- Rubber Cover
- User Manual
- CR2032 Battery
- Lens Cloth
TECH & FEATURES –
-
Shake Awake™
-
Multilayer Reflective Glass
-
2 MOA Dot Reticle
-
Up to 50,000 Hours Battery Life (Setting 6)
-
12 Brightness Setting: 10 DL & 2 NV Compatible
-
Convenient Tray Battery Compartment
-
Parallax-free & Unlimited Eye Relief
– SPECIFICATION –
OPTICAL DATA
- Reticle – 2 MOA Dot
- Light Wave – length650nm
- Reticle Color – Red
- Parallax Free – Yes
- Unlimited Eye Relief – Yes
- Magnification – 1x
- Multi-Coatings – Yes
ELECTRONIC DATA
- Power Source – Battery
- Battery Type – CR2032
- Battery Life (Hours) – 50000
- Brightness Setting – 10 DL&2 NV
PHYSICAL DATA
- Window Size – 20mm Diameter
- Dimension (in) – 2.45×1.43×1.6
- Weight (oz) – 2.82
MECHANICAL DATA
- Housing Material – 6061 T6 Aluminum
- Surface Finish – MAO
- Adjustment per Click – 0.5 MOA
- W&E Travel Range± – 50 MOA
ENVIRONMENT DATA
- Storage Temperature – -40℃~70℃
- Working Temperature – -30℃~60℃
- Submersion – IP67
- Vibration – 1000G
