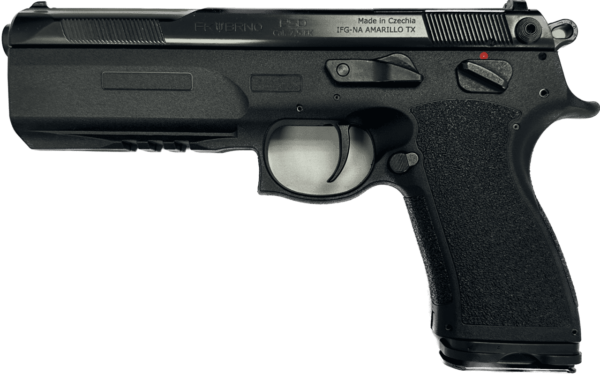

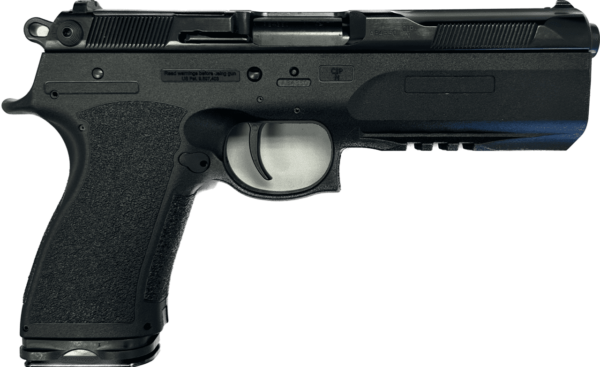

PSD MULTI CALIBER PISTOL
Single action, tilting barrel, positive-lock mechanism pistol with a patented recoil attenuating system developed specifically to handle the potent and highly terminal 7.5 FK cartridge.
Proprietary multi-caliber magazine allows the use of three calibers: 7,5 FK, 10 mm auto, and .40 S&W.
The 7.5 cartridge/pistol system is a compact magazine fed pistol that is accurate at longer ranges, similar to carbines and large calibre pistols. Although the 7.5 has the ballistic capability of a rifle it is easy to control and engage targets at distance.
Unique auxiliary barrel system that is designed to give the user the option to train with other calibers especially when the stopping and incapacitation power of the 7.5 FK is not required. Our barrel system incorporates a simple barrel change procedure that does not require tools or expertise. A barrel change takes less than one minute.
Design is highly ergonomic and general dimensions similar to most military size pistol frames.
Fully Integrated optic mounting platform suitable for various types of reflex sights including Trijicon, Doctor, Vortex, Bushnell and others.
A Three-Point Target Sight is adjustable for windage and the front sight is pre adjusted for elevation.
Proprietary design that is supplied standard with the pistol, it is designed to allow the shooter very rapid acquisition of the target at shorter distances due to the wide open ring, while maintaining the ability to shoot very accurately at longer ranges due to the unique triangular front sight that automatically aligns in the center of the ring and eyesight of the shooter.
The main sight is adjustable for windage, and the front sight is pre adjusted for elevation.
SPECIFICATIONS
BARREL LIFE:
20,000 ROUNDS IN 7,5 FK, 30,000 ROUNDS IN 10 MM/40 S&W
CALIBERS:
MAIN STANDARD_________7,5 FK
AUXILIARY OPTION 1_____10 MM/40 S&W
AUXILIARY OPTION 2_____9 MM LUGER +P+
BARREL LENGTH:
136 MM (5.3″)
WEIGHT:
1100 G (38.8 OZ)
LENGTH:
230 MM (9.05″)
WIDTH:
30 MM (1.2″)
HEIGHT:
135 MM (5.3″) / WITH SIGHT 146 MM (5.75″)
FRAME:
HIGH STRENGTH COMPOSITE POLYMER
STEEL MATERIAL:
HIGH STRENGTH MIL SPEC ALLOY STEEL
FINISH COLOR:
NITRIDE / DARK GRAY
MAGAZINE CAPACITY:
7,5 FK – 16 ROUNDS
10 MM AUTO – 10 ROUNDS
9 MM – 17 ROUNDS
FRONT SIGHT:
FK PIN POINT (OPTIONAL)
REAR SIGHT:
3 DOT (OPTIONAL) , OPTIC MOUNTING POINT
FEATURES
- Quick and easy barrel/calibre conversion.
- Proprietary recoil attenuating system.
- Proprietary multi-calibre magazine allows the use of 3 calibres, 7.5 FK, 10mm, and .40 S&W.
- Textured, ergonomic frame provides a secure and comfortable grip.
- Integrated optics mounting platform compatible with most leading brands.
- Rapid acquisition sight system that does not require adjustment within the range spectrum.
- Sights shoot to aiming point up to 100 meters with the 7.5 FK calibre.
- Picatinny rail for easy mounting of accessories.
- Slide charging handles.
- Lifetime warranty on frame and slide.
- Two-year warranty on all wearable parts.
